16TI Super-Duty I-Beam Tilt Trailer

Alternative Views:

Product Code: 16TI

Request a Quote

Description

Specs & Features

The Big Tex 16TI I-Beam Tilt Trailer is the industry standard for operators who need a grit-tested, ramp-free solution for hauling low-clearance gear. Built on a massive 8-inch I-beam frame forged for heavy hauls, this tilt trailer features a hydraulic deck with a 12-degree angle and a diamond plate knife edge to let scissor lifts and skid steers glide on without a fight. The EZ Pedal locking mechanism keeps the tilt deck rock-solid for the long haul, while integrated fork pockets and a mega-sized lockable toolbox keep your deck clear and your gear secure. When the job is demanding and the equipment is heavy, the 16TI is the undisputed workhorse your fleet can count on.

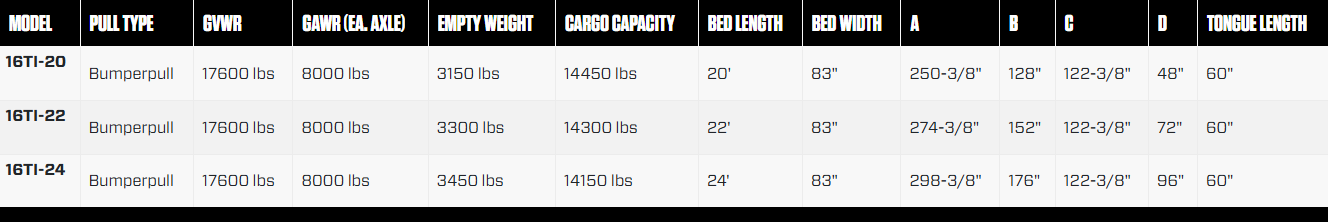

Width:

83"

Length:20', 22', 24'

GVWR:17,600 lbs

Cargo Capacity:14,150—14,450 lbs

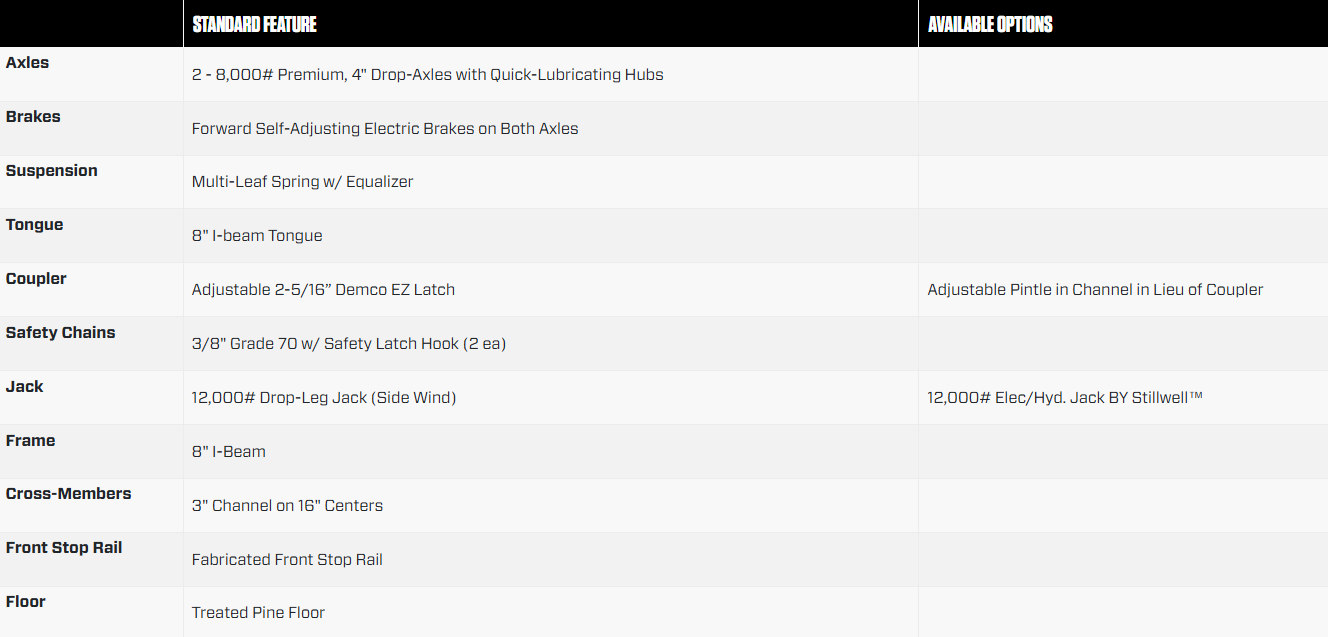

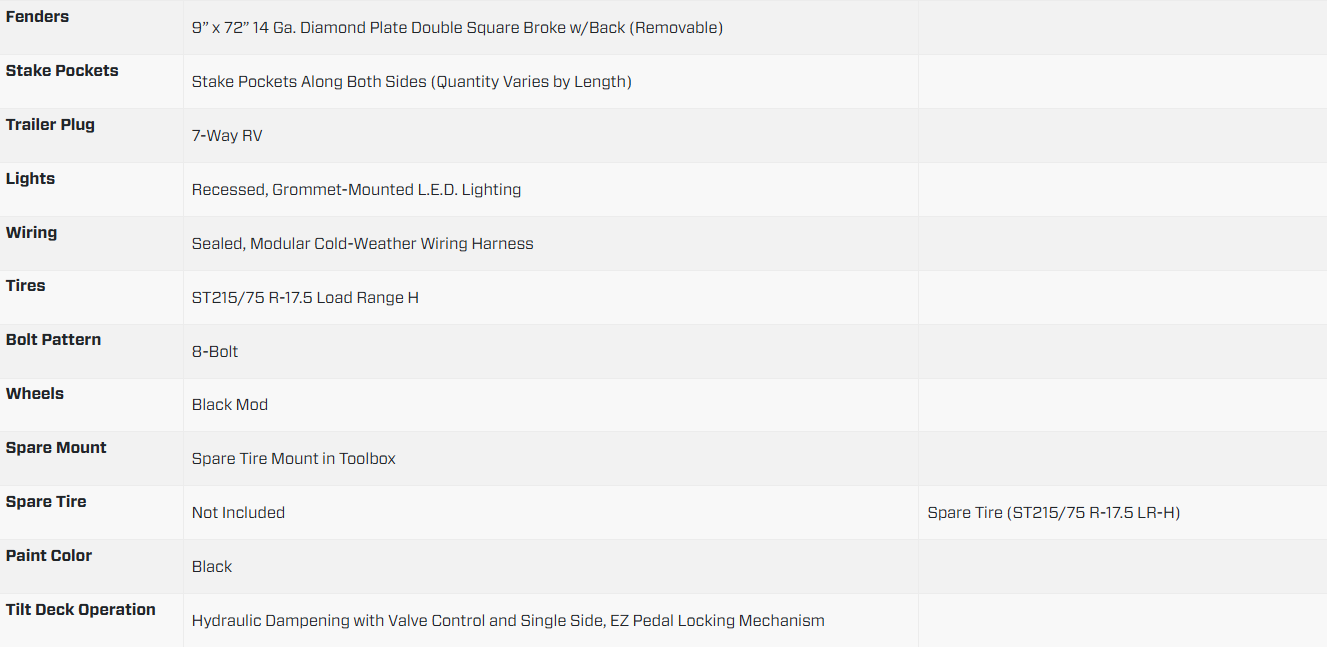

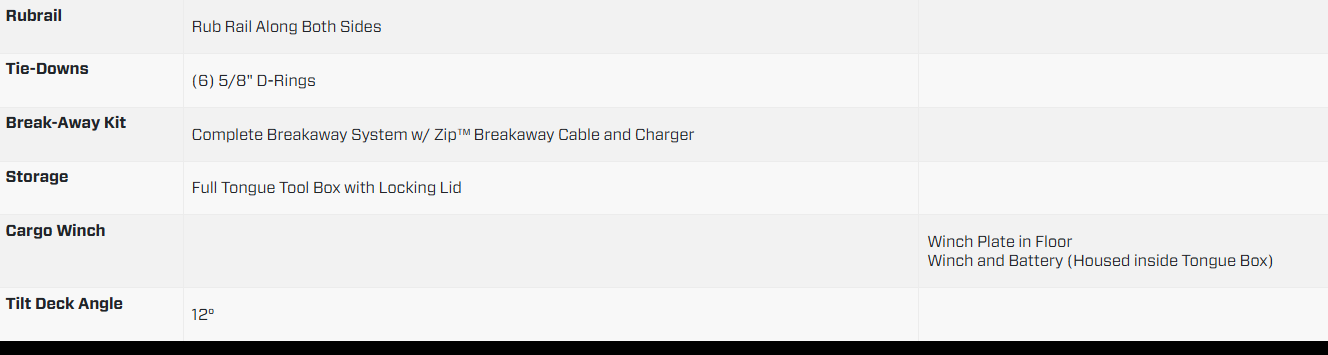

Standard Equipment Information
