3XPH Super Duty Tandem Dual Pintle Trailer

3XPH Super Duty Tandem Dual Pintle Trailer, trailers, Burgoon Company, Big Tex Trailers

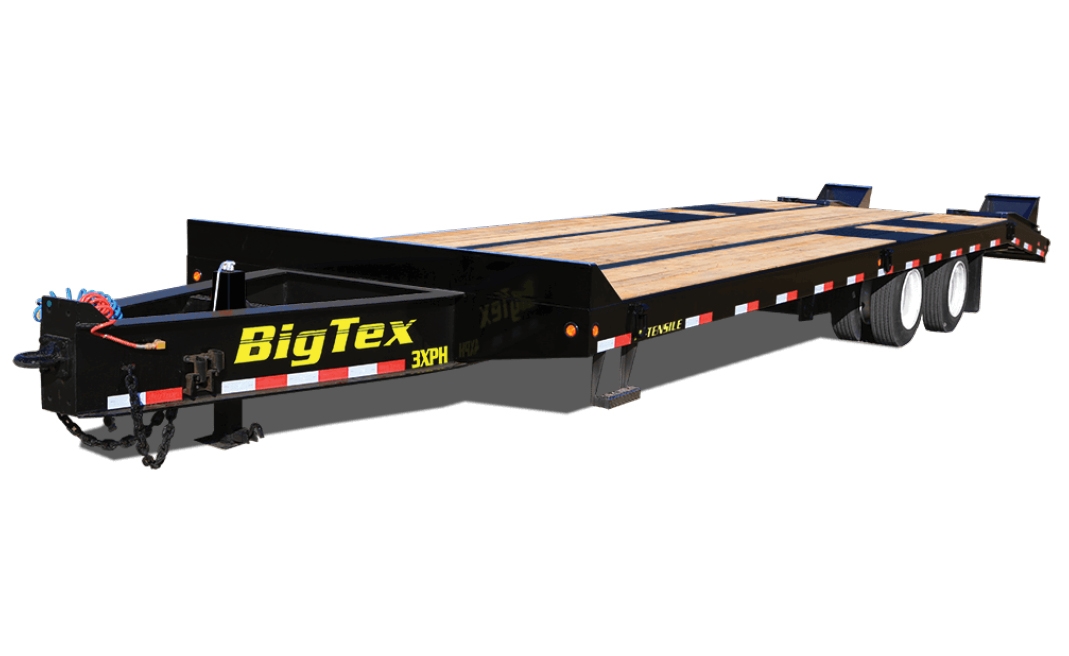

*Picture may show optional items




Product Code: 3XPH
Request A Quote

Description Technical Specs Extended Information

The 3XPH from Big Tex Trailers is our super duty pintle trailer equipped with 15K heavy duty axles with Dexter Adjustable suspension. This unit features a low profile pierced beam frame standard, LED lights, side bed steps, and a 3″ ID Pintle Ring.
Standard Features
  • 3” ID Pintle Ring
  • 12,000# Drop Leg Jack- Top Wind (Bolted On)
  • 102” Overall Width
  • (2) Side Bed Steps
  • 3/8” Heavy Duty Rub Rail
  • Tie Down Pockets Along Sides, 24” On Center
  • 1-1/4” Pipe Chain Spools Between Tie Down Pockets
  • Dexter Brand Axles
  • Oil Bath Hubs
  • Forward Self Adjusting Brakes
  • Heavy Duty 44,000# Adjustable Suspension
  • Torque Tube Standard on 28’ (Flat Deck) & Longer
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Modular Sealed Wiring Harness
  • Spare Tire Mount (Top of Neck)
  • 5’ Dovetail w/ 5’ Double Hinged Spring Assist Flip-Over Ramps
  • Complete Break-A-Way System w/Charger
  • Radial Tires
  • Mudflaps
  • Spare Tire & Wheel- Standard Equipped New!
